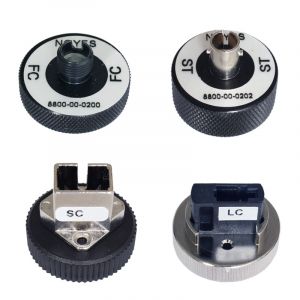

Adapters for VS300 & OFS300 Inspection Fiberscopes
Jellemzők
VS300 and OFS300 Fiberscopes have a threaded mount accepting NOYES standard adapters for inspection of many industry standard connectors.
adatlapAdapters for VS300 & OFS300 Inspection Fiberscopes
|
Part Number
|
Description
|
|
8800-00-0214
|
2.5 mm Universal (accepts FC, SC, and ST ferrules)
|
|
8800-00-0224
|
1.25 mm Universal (accepts LC and MU ferrules)
|
|
8800-00-0200
|
FC
|
|
8800-00-0209
|
SC
|
|
8800-00-0202
|
ST®
|
|
8800-00-0225
|
LC simplex/duplex
|
|
8800-00-0221
|
E-2000
|
|
8800-00-0226
|
MU simplex
|
|
8800-00-0219
|
2.5 mm open Universal. Accepts SC duplex, OptiTap connector for measuring optical power.
|
|
8800-00-0230
|
MT-RJ (A side only). When used for loss testing,
“A side only” adapter verifies system polarity
|
|
8800-00-0231
|
MT-RJ (A side or B side)
|
|
8800-00-0203
|
SMA
|
|
8800-00-0201
|
D4
|
|
8800-00-0204
|
Biconic
|
|
8800-00-0210
|
ESCON®
|
|
8800-00-0205
|
FDDI (for OPM ports only!)
|
|
8800-00-0211
|
DIN 47256
|
|
8800-00-0212
|
Radiall PFO/VFO Adapters for Plastic Optical Fiber (POF)
|
|
8800-00-0223
|
1000 mm bare fiber (plastic)
|
|
8800-00-0271PR
|
HP-HFBR-45XX POF Universal
|
|
8800-00-0220
|
Angled SC
|
|
8800-00-0218
|
Angled FC
|
|
8800-00-0229
|
Angled E-2000
|
|
8800-00-0237
|
MPX®
|
|
8800-00-0234
|
MTP®/MPO angled ferrule (8°), typically SM
|
|
8800-00-0233
|
MTP®/MPO flat ferrule (0°), typically MM
|
|
8800-00-0242
|
MT Ferrule. Angled ferrule (8°)
|
|
8800-00-0241
|
MT Ferrule. Flat ferrule (0°)
|
|
8800-00-0236
|
1.25 mm open Universal
|
|
8800-00-0219
|
2.5 mm open Universal
|
|
8800-00-0235
|
SMC 0°
|
|
8800-00-0244
|
1.6 mm ferrule (pin)
|
|
8800-00-0248
|
2.0 mm ferrule (pin)
|
|
8800-00-0227
|
EC (Radiall)
|
Notes:
- For images of adapters refer to Test Port Adatper Selection Guide (PDF) available from Related Documents tab.
- ESCON is a registered trademark of IBM
- MPX is a registered trademark of Tyco Electonics
- MTP is a registered trademark of US Connec
- ST is a registered trademark of Lucent Technologies
