SLP5 Triple Wavelength Loss Test Kits with Data Storage

Jellemzők

  • Hand-held, rugged, lightweight
  • Test single-mode networks
  • USB port for transfer of stored results
  • TRM™ Reporting Software (Windows® compatible)
  • Certification Testing and Report Generation

Alkalmazás

  • Certify single-mode links per TIA/EIA standards
  • Fiber identification prior to splicing
  • Passive Optical Networks (PON) testing
  • Save test data for Report Generation with NOYES TRM™ Software



PDF_014_36x36.jpgadatlap

Gyártói oldal - AFL link

Single-Mode Loss Test Kits with TRM™ Reporting Software

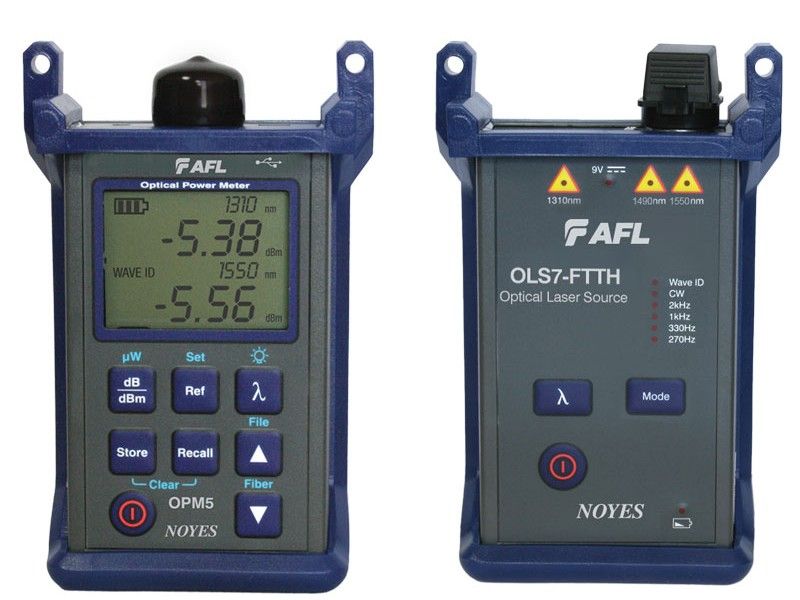

NOYES OLS7 based SLP5 (single-mode loss test kits) are rugged kits for loss testing and certifying fiber networks to industry standards.  Backlight display works well in darker environments or direct sunlight.  Interchangeable connector adapters provide access to common network interfaces and provide access for cleaning launch and receive ports.

OLS7 Triple Wavelength Laser Sources are single-port light source designed for performing insertion loss measurements on single-mode fiber optic links. Capable of transmitting highly stabilized output (single, dual, or triple wavelength) ensuring fast and accurate test results per current TIA/EIA requirements.

Models:
OLS7-FTTH: Designed for testing FTTH networks with 1310, 1490, and 1550 nm wavelengths.
OLS7-FTTx: Designed for testing FTTx networks with 1310, 1490, and 1625 nm wavelengths.
OLS7-3: Offers 1310, 1550, and 1625 nm wavelengths for testing applications such as Telecom and CATV.

OPM5 Optical Power Meter provides accurate measurements, reference storage for each calibrated wavelength, offers multiple test tone detection for fiber identification, and in unit data storage. The simple to use interface allows for easy separation of test results into files. In unit file management provides access to files and results for quick and easy retest of fibers and keeps cable/job results separated for fast customer report generation. Quickly transfer test results to PC via USB interface.


Automatic Wavelength Identification Significantly Increases Efficiency

Standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors. It significantly increases efficiency and reduces technician errors—and saves testing time—by eliminating the need to test each wavelength individually.


Test Results Storage, Transfer, and Post Processing with TRM™

OPM5 File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing.

The supplied powerful PC Analysis and Reporting Tool (TRM - Test Results Management software) allows users to apply industry standards based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance to industry standards and illustrate headroom. TRM is a Windows® compatible software.


Key Specifications



OLS7 Light Source

  • OLS7-FTTH Optical Port Wavelengths: 1310, 1490, and 1550 nm
  • OLS7-FTTx Optical Port Wavelengths: 1310, 1490, and 1625 nm
  • OLS7-3 Optical Port Wavelengths: 1310, 1550, and 1625 nm
  • Output connector: FC, SC, ST, LC switchable
  • Test Tones: 2 kHz, 1 kHz, 330 Hz, 270 Hz

OPM5-4D Optical Power Meter

  • Detector: Hi-Power InGaAs
  • Calibrated Wavelengths: 850, 980, 1310, 1490, 1550, 1625 nm
  • Measurement units: db, dBm, µW

Model Number: SLP5-FTTH-yy (yy = FC, SC, ST, or LC)
The SLP5-FTTH combines one (1) OLS7-FTTH (1310, 1490, 1550 nm) Source and one (1) OPM5 Power Meter (High Power Option).

Model Number: SLP5-FTTx-yy (yy = FC, SC, ST, or LC)
The SLP5-FTTH combines one (1) OLS7-FTTH (1310, 1490, 1550 nm) Source and one (1) OPM5 Power Meter (High Power Option).

Model Number: SLP5-7-yy (yy = FC, SC, ST, or LC)
The SLP5-7 combines one (1) OLS7-3 (1310, 1550, 1625 nm) Source and one (1) OPM5 Power Meter (High Power Option).



OLS7 Accessories and Connector Adapters

Model
Description
2900-50-0002MR
FC adapter
2900-50-0003MR
SC adapter
2900-50-0004MR
ST adapter
2900-50-0006MR
LC adapter
8800-00-0072PR
Universal flip-top dust cap for UCI outputs
4050-00-0119PR
100-240 VAC to 9 VDC


OPM5 Accessories

Model
Description
8800-00-0200
FC adapter
8800-00-0209
SC adapter
8800-00-0202
ST® adapter
8800-00-0225
LC adapter
4050-00-0119PR
AC Adapter 100-240 VAC to 9 VDC
6000-00-0024MR
Cable, USB-MINI B connect to PC





Prepaid Calibration Plans





PN

Description

CAL2-00-SLP5-7

2 Year Cal Plan for SLP5-7

CAL2-00-SLP5-FTTH

2 Year Cal Plan for SLP5-FTTH

CAL2-01-SLP5-7

2 Year Cal Plus Plan for SLP5-7

CAL2-01-SLP5-FTTH

2 Year Cal Plus Plan for SLP5-FTTH

 For details see the Prepaid Calibrations and Calibration Plus plans product page
