MLP5-2 Multimode Loss Test Kit with Data Storage


  • Hand-held, rugged, lightweight
  • Test multimode networks
  • USB port for transfer of stored results
  • TRM™ Reporting Software (Windows® compatible)
  • Certification Testing and Report Generation


  • Certify multimode links per TIA/EIA standards
  • Fiber identification prior to splicing
  • Passive Optical Networks (PON) testing
  • Save test data for Report Generation with NOYES TRM™ Software

MLP5-2 Multimode Loss Test Kit with TRM™ Reporting Software

NOYES MLP5-2 rugged loss test kit for testing and certifying fiber networks to industry standards. Backlight display works well in darker environments or direct sunlight. Interchangeable connector adapters provide access to common network interfaces and provide access for cleaning launch and receive ports.

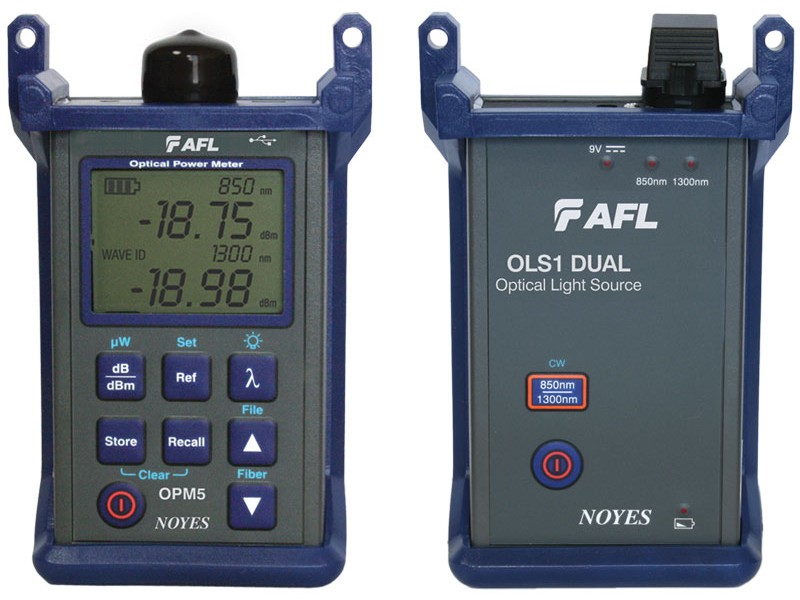

OLS1-Dual LED Source is a single-port LED (850 and 1300 nm) light source designed for performing insertion loss measurements on multimode fiber optic links. Capable of transmitting highly stabilized output (single or dual wavelength) ensuring accurate test results per current TIA/EIA requirements.

OPM5 Optical Power Meter
provides accurate measurements, reference storage for each calibrated wavelength, offers multiple test tone detection for fiber identification, and in unit data storage. The simple to use interface allows for easy separation of test results into files. In unit file management provides access to files and results for quick and easy retest of fibers and keeps cable/job results separated for fast customer report generation. Quickly transfer test results to PC via USB interface.

Automatic Wavelength Identification significantly increases efficiency

Standard Wave ID feature automatically detects and sets the receive wavelength(s), preventing setup and measurement errors. It significantly increases efficiency and reduces technician errors—and saves testing time—by eliminating the need to test each wavelength individually.

Test Results Storage, Transfer, and Post Processing with TRM™

The OPM5 File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing.  The supplied powerful PC Analysis and Reporting Tool (TRM - Test Results Management software) allows users to apply industry standards based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance to industry standards and illustrate headroom. TRM is a Windows® compatible software.

50 and 62.5 µm fiber mandrels Included

Mandrels condition test cable for use in certifying both 50 and 62.5 µm fiber links for current and planned high bit rate applications including Gigabit Ethernet and 10 Gigabit Ethernet.  Mandrels apply to launch jumpers is seconds without tools and ensure loss measurements comply with TIA/EIA-568-B standard.

Key Specifications

OLS1-Dual LED Source
  • MM Wavelengths: 850 and 1300 nm
  • Output Power: -20 dBm
OPM5 Optical Power Meter
  • Detector: Germanium
  • Calibrated Wavelengths: 850, 1300, 1310, 1490, 1550 nm
  • Measurement units: db, dBm, µW
Model Number: MLP5-2xx (xx = FC, SC, ST, or LC)
The MLP5-2 combines one (1) OL1-Dual LED Source and one (1) OPM5 Power Meter.

OLS1-Dual Accessories and Connector Adapters

FC adapter
SC adapter
ST adapter
LC adapter
Universal flip-top dust cap for UCI outputs
100-240 VAC to 9 VDC

OPM5 Accessories

FC adapter
SC adapter
ST® adapter
LC adapter
AC Adapter 100-240 VAC to 9 VDC
Cable, USB-MINI B connect to PC


Prepaid Calibration Plans

2 Year Cal Plan for MLP5-2
2 Year Cal Plus Plan for MLP5-2

For details see the Prepaid Calibrations and Calibration Plus plans product page

USA National Stock Number (NSN) 6625015541593
