iConverter T3/E3
Jellemzők
- T3 (DS3) or E3 Coax to fiber media converter
- Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
- Framing independent; supports framed or unframed and channelized or fractional unchannelized data
- Supports dual fiber and single-fiber with distances of up to 120km and 40km respectively
- Supports Small Form Pluggable (SFP) transceivers with standard and CWDM wavelengths
- Supports SFP Digital Diagnostic Monitoring Interface (DDMI) bus
- Supports multimode and single-mode fiber with ST, SC, LC and MT-RJ connectors
- Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
- Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
- SNMP management via NetOutlook® provides realtime port and module information, remote parameter configuration and trap notification
- Management is available with the addition of a management module to the chassis
- Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
Alkalmazás
T3/E3 media converter provides a cost-effective solution for extending telecom demarcation points. A pair of T3/E3 converters is used to extend the demarcation between buildings via fiber. Multimode or single-mode fiber can be used, and fiber links can be extended up to 120km using single-mode fiber.
The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
The T3/E3 supports fixed fiber and Small Form Pluggable (SFP) transceivers, enabling adaptability to different fiber types, distances and wavelengths, providing maximum flexibility across a variety of network architectures and topologies. Support for SFP transceivers increases the bandwidth capacity of fiber access infrastructure by incorporating Coarse Wave Division Multiplexing (CWDM) technology. CWDM SFPs provide wavelength conversion enabling multiplexing of up to 16 wavelengths on the same fiber pair. The same media converter can utilize a variety of SFPs for different wavelengths and distances, reducing costs and simplifying inventories.
The T3/E3 also supports a variety of fixed fiber connectors for multimode, single-mode and single-mode single-fiber.
Individual coax and fiber port access can be controlled, providing the network administrator with an easy mechanism for controlling usage and access to the network when installed in a chassis with network management.
The T3/E3 features extensive local and remote loopback userselectable diagnostic modes. Local loopback facilitates individual coax or fiber loopback operations. Remote loopback facilitates setting a remote T3/E3 converter to loopback mode, in order to test the integrity of the fiber and the remote converter, eliminating the cost of external hardware or support personnel at each end of the link.
Additional diagnostic features include forcing of all 1s data patterns, Alarm Indication Signal (AIS), to the coax or fiber interfaces and generating and monitoring a Pseudo Random Bit Sequence (PRBS) per ITU O.151 specification. These diagnostic features combined with the informative and easy-to-read LED display facilitate quick installation, fault detection, isolation and correction.
The iConverter T3/E3 is available as a compact, unmanaged standalone unit or as a chassis managed plug-in module. The hot-swappable plug-in module can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. It can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis.
As a standalone unit, the T3/E3 is available as a wall-mount unit. The wall-mount models are DC powered and are available with an external AC/DC power adapter or a terminal connector for DC power.
Paraméterek
Model Type | T3/E3 |
Protocols | ANSI: T1.102, T1.107, T1.404, T1-404a (T3), ITU: G.703, (E3), G.751, O.151 ETSI: EN 300 689, 300 686, 300 687 |
UTP Connectors | RG-59 Coax, 75 ohm, BNC DS3: 380m E3: 440m |
Fiber Connectors | SFP: LC Dual Fiber: SC, ST, LC, MT-RJ Single-Fiber: SC |
Controls | T3/E3 Select, Coax Build-Out, Coax Enable/Disable, Fiber Enable/Disable, AIS to Fiber, AIS to Coax, PRBS to Coax, Loop-Back Coax, Loop-Back Fiber, Loop-Back Remote |
LED Displays | Power, Fiber Activity, Coax Activity, Fiber AIS Detect, Coax AIS Detect, Coax PRBS Detect, Fiber Test, Fiber Loop-Back, Coax Loop-Back |
DC Power | Plug-in: 0.7A @ 3.3VDC (typical) Standalone: Voltage Range: 5 - 32VDC 0.3A @ 9VDC |
DC Power Connector | Plug-in: Power supplied by backplane Standalone: 2.5mm Barrel Connector or Terminial Connector |
AC Power Adapter [US] |
Plug-in: N/A Standalone: 120VAC/60Hz 0.05A @ 120VAC |
AC Power Adapter [Universal] |
Plug-in: N/A Standalone: 100-240VAC/50 to 60Hz 0.05A @ 120VAC |
Dimensions | Plug-in: W:0.85" x D:4.5" x H:2.8" Standalone: W:3.8" x D:4.8" x H:1.0" (Wall-mount version) |
Weight | Plug-in: 8 oz. Standalone: 1lb |
Compliance | UL, CE, FCC Class A |
Temperature | Standard: 0 to 50º C Wide: -40 to 60º C Extended: -40 to 75º C Storage: -40 to 80º C |
Humidity | 5 to 95% (non-condensing) |
Altitude | -100m to 4000m |
MTBF (hrs) without power adapter |
Plug-in: 480,000 Standalone: 490,000 |
MTBF (hrs) with power adapter |
Standalone: US: 250,00 Universal: 100,000 |

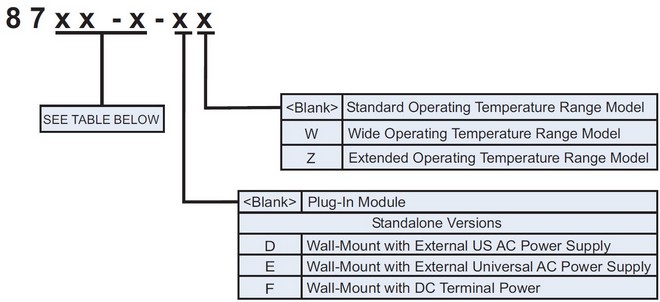

Model Type | Fiber / Media Type | Distance | Connector Types | Tx λ (nm) | Rx λ (nm) | Min. Tx Power (dBm) | Max. Tx Power (dBm) | Min. Rx Sense (dBm) | Max. Rx Sense (dBm) | Link Budget (dBm) | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ST | SC | MT-RJ | LC | SFP | ||||||||||
T3/E3 Coax Dual Fiber | - | - | - | - | - | - | 8759-0** | - | - | - | - | - | - | - |
MM | 5km | 8740-0 | 8742-0 | 8744-0 | - | - | 1310 | 1310 | -23 | -12 | -31 | -12 | 8 | |
SM | 30km | 8741-1 | 8743-1 | 8745-1 | 8747-1 | - | 1310 | 1310 | -15 | -8 | -31 | -8 | 16 | |
SM | 60km | 8741-2 | 8743-2 | - | 8747-2 | - | 1310 | 1310 | -5 | 0 | -31 | -3* | 26 | |
SM | 120km | - | 8743-3 | - | 8747-3 | - | 1550 | 1550 | -5 | 0 | -31 | -3* | 26 | |
T3/E3 Coax Single-Fiber | SM | 20km | - | 8750-1 | - | - | - | 1310 | 1550 | -15 | -5 | -30 | -3 | 15 |
SM | 40km | - | 8750-2 | - | - | - | 1310 | 1550 | -8 | 0 | -30 | -3* | 22 | |
SM | 20km | - | 8751-1 | - | - | - | 1550 | 1310 | -15 | -5 | -30 | -3 | 15 | |
SM | 40km | - | 8751-2 | - | - | - | 1550 | 1310 | -8 | 0 | -30 | -3* | 22 |
Chassis and Mounting Options Ordering Table
19-Module | 5-Module | 2-Module | 1-Module | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Configuration | AC (60 watts) | AC (120 watts) | 24VDC | 48VDC | AC | 24VDC | 48VDC | AC | 18-60DC | US AC | UNIV AC |
One (1) Power Supply | 8200-1 | 8201-1 | 8206-1 | 8205-1 | 8220-1 | 8226-1 | 8225-1 | 8230-0 | 8235-0 | 8240-1 | 8240-2 |
One (1) Power Supply with Dying Gasp Support | - | - | - | - | - | - | - | 8230-1 | 8235-1 | 8241-1 | 8241-2 |
Two (2) Power Supplies | 8200-2 | 8201-2 | 8206-2 | 8205-2 | 8220-2 | 8226-2 | 8225-2 | - | - | 8245-111* | 8245-112* |
Three (3) Power Supplies | 8200-3 | 8201-3 | 8206-3 | 8205-3 | - | - | - | - | - | - | - |
Spare Power Supply | 8200-9 | 8201-9 | 8206-9 | 8205-9 | 8220-9 | 8226-9 | 8225-9 | - | - | - | - |
23" Rack Mounting Kit | 8091-2 | 8091-2 | 8091-2 | 8091-2 | 8092-2 | 8092-2 | 8092-2 | - | - | - | - |
Blank Module Panel | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | - | - |
Wall Mounting Hardware Kit | - | - | - | - | - | - | 8249-0 | 8249-0 | 8249-0 | 8249-0 | |
1U 19" Rack Mount Shelf | - | - | - | - | - | - | - | 8260-0 | 8260-0 | 8260-0 | 8260-0 |
DIN Rail Mounting Kit | - | - | - | - | - | - | - | - | 8250-0 | 8250-0 |
When ordering a Wide Temperature chassis, add a W to the end of the part number. For example:8230-1W
Consult factory for extended temperature (-40 to +75º C) models.
* Click on part number for complete ordering information on the 1-Slot Redundant Power Chassis with Power over Ethernet
