iConverter RS422/485
Jellemzők
- Managed Serial RS-422 and RS-485 to fiber media converter with automatic Full-Duplex baud rate detection
- Supports baud rates ranging from 110 to 921,600 baud
- Supports multimode, single-mode and single-fiber with ST, SC, LC and MT-RJ connector options
- Supports distances up to 5km on multimode and 120km on single-mode
- Supports DB-9 and Terminal Block connector options for serial interface
- Features built-in configurable terminators
- Features configurable baud rate for Half-Duplex RS-485 and Full-Duplex RS-485 operation
- Supports RTS and CTS controls
- Supports Point-to-Point Half and Full-Duplex, Multi- Point Full-Duplex, and either Head, Tail or Mid-Position
- Features remote Fiber Loopback DIP-switch for easy testing of fiber link, even during serial transmission
- Management is available with the addition of a management module to the chassis
- SNMP management via NetOutlook® provides real-time port and module information, remote parameter configuration and trap notification
- Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
- Lifetime Warranty and free 24/7 Technical Support
Alkalmazás
The Omnitron iConverter RS422/485 is a managed serial RS-422 and RS-485 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends serial signals up to 120km, and is immune from electrical and magnetic interference.

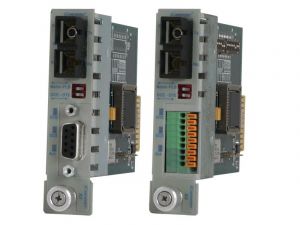

The RS422/485 is available with a single-mode, multimode or single-fiber transceiver. The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.
The RS422/485 automatically detects the signal baud rate of connected Full-Duplex serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's Full-Duplex baud rate during operation without reconfiguration or interruption of service.
Half-Duplex RS-485 and Full-Duplex RS-485 (sometimes referred to as Multipoint RS-422) operations are supported via a configurable baud rate DIP-switch to match the master/slave communication timing.
Connection to DTE or DCE devices is configured by an easily accessible DIP-switch on the front-panel. This feature eliminates the need to use a specific serial cable for each type of device.
A built-in remote Fiber Loopback DIP-switch provides easy validation of the entire fiber segment without interrupting fiber operations.
Integrated configurable terminators support RS-422 and RS-485 operations, allowing the unit to be deployed at any node in the serial line.
iConverter RS422/485 modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with any combination of redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC/DC powered chassis.
The iConverter family of managed fiber access media converters are used in Service Provider access networks and Enterprise LANs. iConverter media converters provide fiber connectivity with copper-to-fiber, multimode fiber to single-mode fiber, or dual fiber to single-fiber conversions.
Paraméterek
Model Type | RS422/485 |
Protocols | Serial RS-422, Serial RS-485 |
Copper Connectors | DB-9 Female or Terminal Block |
Fiber Connectors | ST, SC, MT-RJ, LC |
Controls | DTE/DCE, Fiber Loop-Back |
LED Displays | Power, Test, Fiber Lnk/Act, DTE, DCE, Serial Act |
Dimensions | W:0.85" x D:4.5" x H:2.8" |
Weight | 8 oz. |
Compliance | UL, CE, FCC Class A |
Power Requirement | 0.5A @ 3.3VDC (typical) |
Temperature | Standard: 0 to 50º C Wide: -40 to 60º C Storage: -40 to 80º C |
Humidity | 5 to 95% (non-condensing) |
Altitude | -100m to 4000m |
MTBF (hrs) | 850,000 |
Model Type | Fiber / Media Type | Distance | Connector Types | Tx λ (nm) | Rx λ (nm) | Min. Tx Power (dBm) | Max. Tx Power (dBm) | Min. Rx Sense (dBm) | Max. Rx Sense (dBm) | Link Budget (dBm) | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ST | SC | MT-RJ | LC | ||||||||||
RS422/485 Dual Fiber | MM | 5km | 8780-0 | 8782-0 | 8784-0 | 8786-0 | 1310 | 1310 | -24 | -14 | -31 | -14 | 7 |
SM | 30km | 8781-1 | 8783-1 | 8785-1 | 8787-1 | 1310 | 1310 | -15 | -8 | -31 | -5 | 16 | |
SM | 60km | 8781-2 | 8783-2 | - | 8787-2 | 1310 | 1310 | -5 | 0 | -31 | -3* | 26 | |
SM | 120km | - | 8783-3 | - | 8787-3 | 1550 | 1550 | -5 | 0 | -31 | -3* | 26 | |
RS422/485 Single-Fiber | SM | 20km | - | 8790-1• | - | - | 1310 | 1550 | -15 | -5 | -30 | -3 | 15 |
SM | 40km | - | 8790-2• | - | - | 1310 | 1550 | -8 | 0 | -30 | -3* | 22 | |
SM | 20km | - | 8791-1• | - | - | 1550 | 1310 | -15 | -5 | -30 | -3 | 15 | |
SM | 40km | - | 8791-2• | - | - | 1550 | 1310 | -8 | 0 | -30 | -3* | 22 |
For wide temperature (-40 to 60º C), add a "W" to the end of the model number.
Consult factory for extended temperature (-40 to +75º C) models.
•When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
When ordering module with terminal block serial port, append 'T' before the dash '-' in the part number. Examples: 8760T-0, 8763T-3, 8770T-1
*A minimum of 3dB of attenuation is required for these models.
Chassis and Mounting Options Ordering Table
19-Module | 5-Module | 2-Module | 1-Module | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Configuration | AC (60 watts) | AC (120 watts) | 24VDC | 48VDC | AC | 24VDC | 48VDC | AC | 18-60DC | US AC | UNIV AC |
One (1) Power Supply | 8200-1 | 8201-1 | 8206-1 | 8205-1 | 8220-1 | 8226-1 | 8225-1 | 8230-0 | 8235-0 | 8240-1 | 8240-2 |
One (1) Power Supply with Dying Gasp Support | - | - | - | - | - | - | - | 8230-1 | 8235-1 | 8241-1 | 8241-2 |
Two (2) Power Supplies | 8200-2 | 8201-2 | 8206-2 | 8205-2 | 8220-2 | 8226-2 | 8225-2 | - | - | 8245-111* | 8245-112* |
Three (3) Power Supplies | 8200-3 | 8201-3 | 8206-3 | 8205-3 | - | - | - | - | - | - | - |
Spare Power Supply | 8200-9 | 8201-9 | 8206-9 | 8205-9 | 8220-9 | 8226-9 | 8225-9 | - | - | - | - |
23" Rack Mounting Kit | 8091-2 | 8091-2 | 8091-2 | 8091-2 | 8092-2 | 8092-2 | 8092-2 | - | - | - | - |
Blank Module Panel | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | 8090-0 | - | - |
Wall Mounting Hardware Kit | - | - | - | - | - | - | 8249-0 | 8249-0 | 8249-0 | 8249-0 | |
1U 19" Rack Mount Shelf | - | - | - | - | - | - | - | 8260-0 | 8260-0 | 8260-0 | 8260-0 |
DIN Rail Mounting Kit | - | - | - | - | - | - | - | - | 8250-0 | 8250-0 |
When ordering a Wide Temperature chassis, add a W to the end of the part number. For example:8230-1W
Consult factory for extended temperature (-40 to +75º C) models.
* Click on part number for complete ordering information on the 1-Slot Redundant Power Chassis with Power over Ethernet
