Fujikura 70S Fusion Splicer

The Fujikura 70S fusion splicer is the fastest fusion splicer in the world. Tovább »

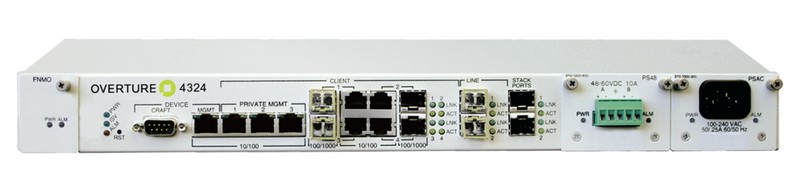

Overture 4200 and 4300

adatlap

Jellemzők

1GigE Carrier Ethernet G.8032 Ring with DS1 Circuit Emulation

Sub-50ms protection switching with G.8032 Ring or LACP
Integrated 1588v2 precision time protocol
H-QoS, 512 queues, 64 EVCs, ingress and egress profiling
Comprehensive service OAM suite
Temperature hardened

Alkalmazás

Business Services
Mobile Backhaul
Datacenter and Private Cloud
Wholesale Ethernet Services

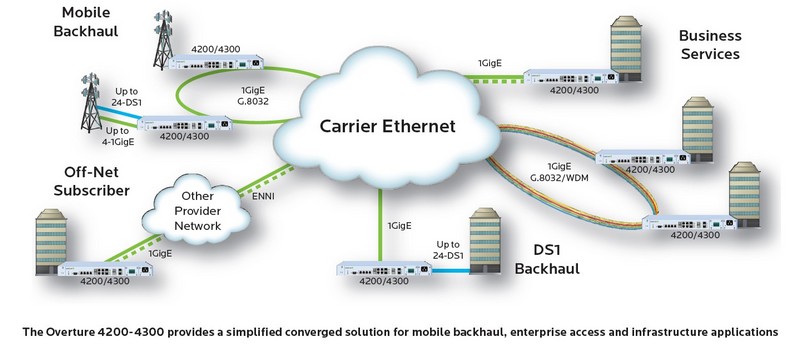

The Overture 4200/4300 series delivers GigE, fast Ethernet and DS1 pseudowire over Carrier Ethernet infrastructure. With industry leading Ethernet OAM and flexible interface options, the Overture 4200/4300 delivers all the capability needed for mobile backhaul, enterprise access and infrastructure applications.

Feature	Benefit
G.8032 Ring	Increased fiber efficiency with sub-50ms protection switching for applications that require protection just like SONET/SDH.
MEF18 certified DS1 circuit emulation	High-performance DS1 circuit emulation is required for mobile backhaul, voice switch and VoIP gateway trunks, SS7 circuits, and private line applications. MEF18 certification.
Hardened	Deploy in demanding evironments like outside plant cabinets or unconditioned equipment closets.
802.1ag, Y.1731	Continuous, real-time moitoring of fault and performance on every EVC is required for network service management and SLA reporting.
99.999% availability	Five-9’s availability is the mark of true carrier class services. Meet customer up-time requirements and reduce the operational cost of truck rolls.

Simplified Services Deployment - Simplify your network with Ethernet and DS1 circuit emulation services on a single converged solution. Deliver MEF18 certified high-performance DS1 circuit emulation services with a choice of integrated 1588v2 or precision-tuned adaptive timing. Deploy in any location with a hardened compact design that can be deployed in outside plant cabinets and tight spaces. Reduce truck rolls with a 99.999% availability solution.

Reliability and Performance – Don’t compromise on reliability and performance as you move from SONET/SDH to Carrier Ethernet. The Overture 4200/4300 G.8032 Ethernet ring provides sub-50ms protection switching. MEF18-certified DS1 circuit emulation meets the same rigorous performance standards as SONET. Designed for 99.999% availability with industrial grade components and redundant hotswappable power supplies; this compact, temperature-hardened product is meant for the most demanding carrier environments.

Market Leading Features – The Overture 4200/4300 provides differentiated service with 64 EVCs, H-QoS, 8-dedicated queues per EVC, Ingress and Egress policing and dynamic p-bit marking. Provide differentiated SLA management with complete 802.3ah, 802.1ag and Y.1731 Service OAM and 192 MEPs. MEF 18 certified DS1 circuit emulation provides more cost effective DS1 service delivery compared with SONET or router based solutions. Sub-50ms protection switching from G.8032 will impress your customers who demand SONET-level performance.

CLIENT INTERFACES
