FlexPoint 10FL/2
10BASE-FL Fiber to 10BASE-2 Coax
Media Converter
Jellemzők
- The FlexPoint 10FL/2 is a 10BASE-FL fiber to 10BASE-2 coax media converter
- Seamlessly connects and extends 10BASE-2 coax network segments via fiber
- Features convenient, switch-selectable coax line termination to save cost and space
- Extends network distances up to 30km
- Labeled status LEDs for quick and easy installation
- Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
- Completely software independent with no installation of drivers required
- Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support
Alkalmazás

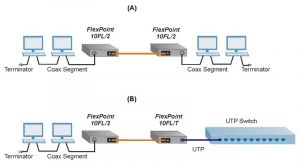

adatlapThe FlexPoint 10FL/2 is a modular 10BASE-FL fiber to 10BASE-2 coax media converter. The FlexPoint 10FL/2 connects and extends coax segments via fiber, and a pair of 10FL/2 converters connect two coax segments via fiber.
No manual configuration is required with the plug-and-play FlexPoint 10FL/2. Connect the fiber and coax cables and the installation is complete.
The fiber port operates at 850nm or 1310nm and features ST connectors. Multimode fiber models support distances of up to 5km, and the single-mode fiber model supports a distance of 30km.
The FlexPoint 10FL/2 features a BNC connector supporting 50 ohm cabling with distances up to 185m. Per IEEE 802.3 standard, up to 30 workstations can be attached to the coax segment. A termination switch provides a convenient 50 ohm cable termination.
Descriptions of the LED indicators are provided on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power, port activity and link status, collision and jabbers.
FlexPoint modules can be mounted utilizing optional wallmounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high density 14-Module, power-redundant Powered Chassis.
FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.
The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.
FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.
Paraméterek
| Model Type | 10FL/2 | ||
| Protocols | IEEE 802.3, 10BASE-FL, 10BASE-2 | ||
| UTP Cable | EIA/TIA 568A/B, Category 5 and higher | ||
| Fiber Cables | Multimode: 50/125, 62.5/125, 100/140μm Single-mode: 9/125μm |
||
| Copper Connectors | BNC, 50 ohm, RG-58/U, RG-58C/U, RG-58/U or equivalent | ||
| Fiber Connectors | ST | ||
| Switches | User Selectable Coax termination | ||
| LED Displays | Power: Yellow LED = Power Applied Jabber: Red LED = Jabber Condition Fiber Link: Green LED = Device Present Fiber Receive: Green LED = Data Received Coax Receive: Green LED = Data Received Collision: Yellow LED = Collision Detected |
||
| Dimensions | W: 3.0" x D: 4.0" x H: 1.0" | ||
| Weight | 6 oz. (without power adapter) | ||
| Compliance | UL, CE, FCC Class A | ||
| Power Requirments | Barrel Connector | Molex Connector | |
| Nominal Voltage: | 9VDC | 5VDC | |
| Voltage Range: | 6.0 to 15.0VDC | 4.75 to 5.25VDC | |
| Power Nominal: | 0.8A @ 9VDC | 0.8A @ 5VDC | |
| Maximum Power: | 1A @ 9VDC | 1A @ 5VDC | |
| Temperature | 0 to 50º C | ||
| Humidity | 5 to 95% (non-condensing) | ||
| Altitude | -100m to 4000m | ||
| MTBF (hrs) | Module without Power Adapter: 1,200,000 Module with Power Adapter -1: 250,000 Module with Power Adapter -2: 100,000 |
||
| Fiber Type | Distance | Connector Type | Tx / Rx λ (nm) | Min. Tx Power (dBm) | Max. Tx Power (dBm) | Min. Rx Sense (dBm) | Max. Rx Power (dBm) | Optical Power Budget |
|---|---|---|---|---|---|---|---|---|
| ST | ||||||||
| MM | 2km | 4310-x | 850 | -21 | -11 | -31 | -11 | 10 |
| MM | 5km | 4312-x | 1310 | -21 | -11 | -31 | -11 | 10 |
| SM | 30km | 4311-x | 1310 | -15 | -8 | -31 | -8 | 16 |
Power Adapter Kits (-x):
-0 = No power adapter included, -1 = 110-120 VAC/60 Hz (US plug), -2 = 100-240 VAC/50-60 Hz (IEC plug, no power cord).
Contact Omnitron for other fiber options and operational temperature ranges
* When operating in half-duplex, the maximum distance is 2km.
