BE radiation resistant breakout cable
Features
- Number of optical fibers: max. 24.
- Resistant to mechanical loads (cyclic bending, tensile, compressive loads).
- The materials used are PVC-free in accordance with NRC Regulatory Giude 1.189 “Fire Protection for Operating Nuclear Power Plants” (no hazardous gas / acid is generated in case of fire, low smoke generation).
- NEC (National Electrical Code) OFNG-LS classification.

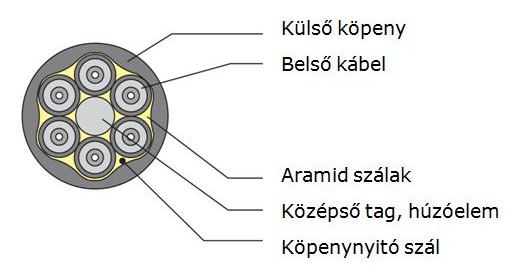

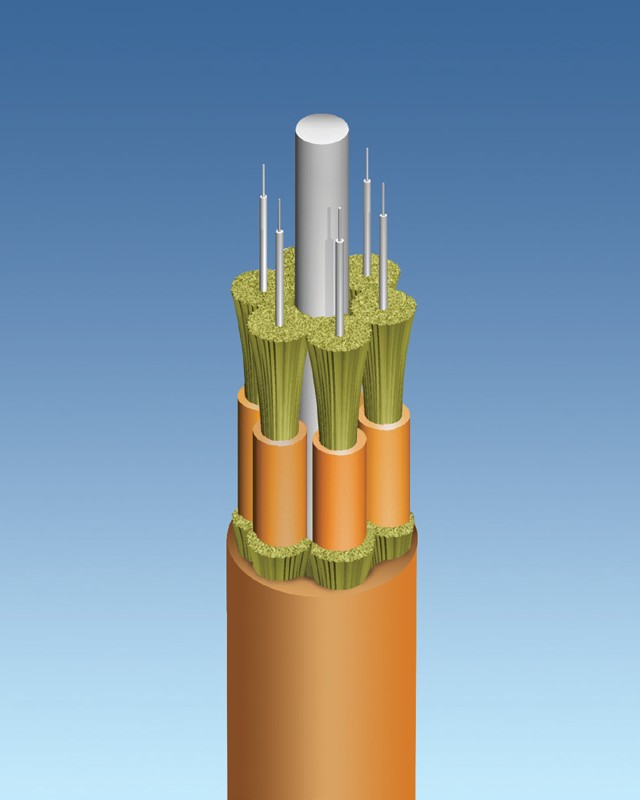

- Internal cables: the fibers are housed in a separate 2.4 mm diameter sheath, this structure provides increased mechanical protection and strength.
- Aramid fibers between the inner cables and the outer sheath to further increase the mechanical strength.
Applications
BE cables are optical cables used in industry and indoor systems for data transmission purposes. Breakout cables used especially in spaces exposed to nuclear radiation (energy industry), in extreme conditions, for high safety requirements (nuclear power plants, cable trays, tunnels, industrial environments, between building levels).
- Outer sheath: extruded, smoke and halogen free (LSZH, Low Smoke Zero Halogen), fiber reinforced polyethylene (FR-PE, Fiber Reinforced PolyEthylene).
- Inner cable sheath: Fiber Reinforced PolyEthylene (FR-PE).
- Middle member: Fiber Reinforced Plastic (FRP) tensile element.
- Meets the following requirements:
- ANSI/ICEA S-83-596 (Premises);
- Telcordia GR-409 (General Purpose, Horizontal Backbone Cable);
- Telcordia GR-409 interconnect requirements (internal cables).
Operating Temperature: -20 C° / +70 C°.
Storage temperature: -40 C° / +70 C°.
Installation temperature: -10 C° / +70 C°.
Compressive strength: 2200 N/cm (EIA-455-41A)
Cable types (AFL products):
Article number | Total number of threads | Nominal diameter | River-meter weight |
Tensile strength |
Bending radius min. cm | ||
mm | kg/km | During installation | Durable | During installation | Durable | ||
RSBE002*242001 | 2 | 8,4 | 63 | 1350 | 450 | 12,6 | 8,4 |
RSBE004*242001 | 4 | 8,4 | 63 | 1350 | 450 | 12,6 | 8,4 |
RSBE006*242001 | 6 | 9,8 | 95 | 2700 | 900 | 14,7 | 9,8 |
RSBE008*242001 | 8 | 11,4 | 128 | 2700 | 900 | 17,1 | 11,4 |
RSBE012*242001 | 12 | 9,3 | 134 | 2700 | 900 | 14,0 | 9,3 |
RSBE024*242001 | 24 | 16,9 | 233 | 2700 | 900 | 25,4 | 16,9 |
*: please indicate the type of optical fiber in the part number (see following table).
Optical data:
Optikai szál típusa |
Attenuation max. |
Overfilled launch min. bandwidth MHz/km | 1 Gigabit Ethernet min. link distance m |
10 Gigabit Ethernet min. link distance m |
||||||
850 nm | 1300 nm | 1310 nm | 1550 nm | 850 nm | 1300 nm | 850 nm | 1300 nm | 850 nm (soros) | 1300 nm (soros) | |
Gradient index, multimode (MM) fibers | ||||||||||
(6) 62.5 Giga-Link 300 | 3.5 | 1.2 | N/A | N/A | 200 | 600 | 300 | 550 | 32 | N/A |
(8) 62.5 Giga-Link 1000 | 3.5 | 1.2 | N/A | N/A | 350 | 600 | 500 | 1 000 | 65 | N/A |
(5) 50 Giga-Link 600 | 3.5 | 1.2 | N/A | N/A | 500 | 500 | 600 | 600 | 82 | N/A |
(L) 50 Laser-Link 300 (OM3) | 3.5 | 1.2 | N/A | N/A | 1500* | 500 | 900 | 550 | 300 | N/A |
(1) 100/140 Graded Index MM Fiber | 5.0 | 4.0 | N/A | N/A | 100 | 100 | N/A | N/A | N/A | N/A |
Stair index single mode (SM) fibers | ||||||||||
(9) Single mode | N/A | N/A | 0.5 | 0.5 | N/A | N/A | N/A | 5 000 | N/A | 10 000 |
(K) Futureguide SR-15e Bend Insensitive | N/A | N/A | 0.5 | 0.5 | N/A | N/A | N/A | 5 000 | N/A | 10 000 |
(AL) Radiation Resistant Singlemode | N/A | N/A | 0.5 | 0.5 | N/A | N/A | N/A | 5 000 | N/A | 10 000 |
