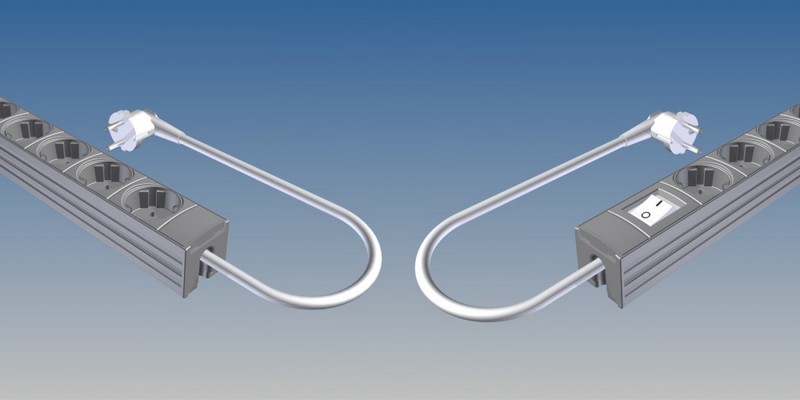

Kontaset DI-STRIP Compact power distribution

Features

Materials

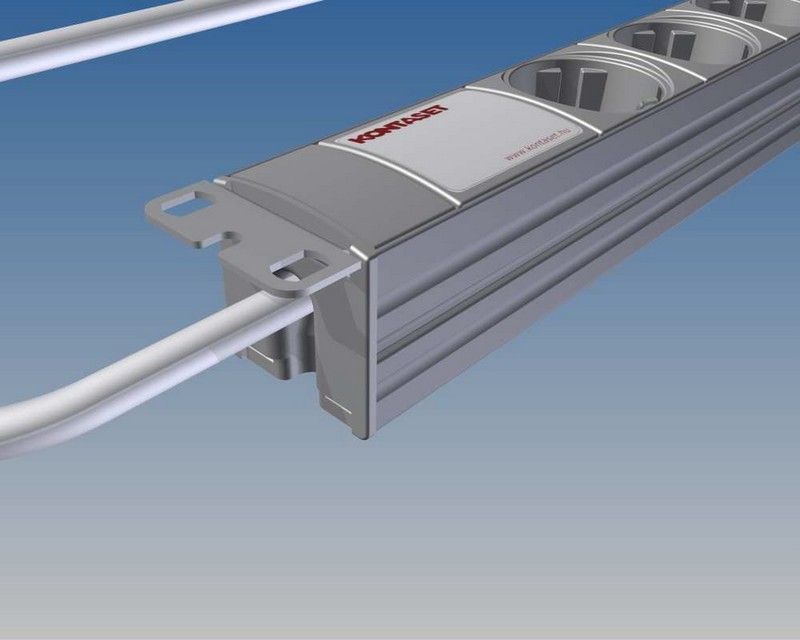

  • Housing: closed, galvanized steel sheet profile with powder-coated surface;
  • External elements, internal insulation: flame retardant polyamide PA 6 (UL94-V0), coloured;
  • Internal conductors: continuous brass conductor rail or twisted PVC insulated copper conductors;
  • Power cable: plastic hose with twisted copper conductors, PVC insulation and PVC outer sheath.

Applications

Our DI-STRIP steel-clad mains distribution boxes are particularly popular for their flexible design and versatility. The 1 unit housing width makes these distributors particularly suitable for use in 19" rack systems. In addition, there are many applications for which these power distributors are available: e.g. office, workshop, audio/video, medical and laboratory. The long lifetime and the recyclable components used in their manufacture save resources and the environment, making these PSUs fit for the environmental requirements of the 21st century.

Safety with verified quality

  • all areas of our company operate under a quality management system certified to the MSZ EN ISO 9001 standard;
  • function and wiring correctness test, further grounding continuity and insulation test according to IEC 60950 for all terminals;
  • in accordance with European Union Directives 2006/95/EC on electrical equipment, 2004/108/EC on electromagnetic compatibility and 2011/65/EU on the restriction of hazardous substances, with CE marking;
  • development, production and testing according to DIN, EN, IEC and MSZ standards;
  • certification VDE, BV GS, BV BG and CSA - according to the type version.
Code Number of connections Contact Colour
PW-316-SCSC060000KR1 6 x RAL7035 grey
PW-316-SCSC060000KR2 6 x RAL5018 turquoise
PW-316-SCSC060000KR3 6 x RAL2003 orange
PW-316-SCSC0700000R1 7   RAL7035 grey
PW-316-SCSC0700000R2 7   RAL5018 turquoise
PW-316-SCSC0700000R3 7   RAL2003 orange
PW-316-SCSC070000KR1 7 x RAL7035 grey
PW-316-SCSC070000KR2 7 x RAL5018 turquoise
PW-316-SCSC070000KR3 7 x RAL2003 orange
PW-316-SCSC0800000R1 8   RAL7035 grey
PW-316-SCSC0800000R2 8   RAL5018 turquoise
PW-316-SCSC0800000R3 8   RAL2003 orange
