CONTEG Intelligent Power Monitored
Features

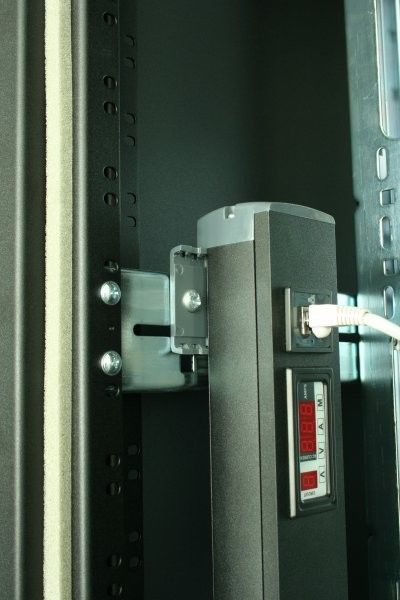

Strips feature a local easy‑to‑read ammeter on the outlet strip along with the ability to monitor the current draw of outlets remotely over an Ethernet connection. The user can aggregate the information from thousands of Intelligent Power Strips in one location. Designed for high density, mission‑critical server applications, the Conteg MONITORED power strips provide reliable power to the cabinet for both standard and Blade server environments.
Applications
Strips feature a local, easy-to-read ammeter on the outlet strip, which monitors the current draw of outlets remotely over an Ethernet connection. The user can aggregate the information from thousands of Intelligent Power Strips in one location. Designed for high-density, mission-critical server applications, the Conteg MONITORED power strips provide reliable power to the cabinet for both standard and blade-server environments.
Enhanced version of the monitored strip offers also Voltage and frequency metering. Hence the PDU is able to report power factor, active and apparent power and main energy consumed in kWh. Further the calculation of carbon emission data (CO2 footprint) and the price estimation of consumed energy are made.
MONITORED PDU | |||||||
Code | Description | ||||||
IP-DMI-008C300016 | Monitored Rack PDU, 1U, 16A, outlets (8)C13, input C20, without input cord | ||||||
IP-DMI-021C33C916 | Monitored Rack PDU, 0U, 16A, outlets (21)C13 and (3)C19, input C20, without input cord | ||||||
IP-DMI-314C32C932 | Monitored Rack PDU, 0U, 32A, outlets (14)C13 and (2)C19, input plug IEC309, cord 3m | ||||||
IP-DMI-321C33C932 | Monitored Rack PDU, 0U, 32A, outlets (21)C13 and (3)C19, input plug IEC309, cord 3m | ||||||
IP-DMI-321C33C911 | Monitored Rack PDU, 0U, 11kW, outlets (21)C13 and (3)C19, input plug IEC309 (3x16A), cord 3m | ||||||
IP-DMI-318C36C922 | Monitored Rack PDU, 0U, 22kW, outlets (18)C13 and (6)C19, input plug IEC309, (3x32A), cord 3m | ||||||
POWER CORDS | |||||||
Code | Description | ||||||
IP-C-C9SH25 | Power cord IEC 320 C19 to Schuko (plug), length 2.5m | ||||||
IP-C-C93025 | Power cord IEC 320 C19 to IEC 309 (plug 1x16A), length 2.5m | ||||||
IP-C-C9C225 | Power cord IEC 320 C19 to IEC 320 C20, length 2.5m | ||||||
IP-C-C9C218 | Power cord IEC 320 C19 to IEC 320 C20, length 1.8m | ||||||
IP-C-C3C405 | Power cord IEC 320 C13 to IEC 320 C14, length 0.5m | ||||||
IP-C-C3C410 | Power cord IEC 320 C13 to IEC 320 C14, length 1.0m | ||||||
IP-C-C3C418 | Power cord IEC 320 C13 to IEC 320 C14, length 1.8m | ||||||
IP-D-PDU-SENSOR | Temperature and humidity sensor for PDU Conteg, cord 1.8m, plug RJ11- (Sensor is supported only in select PDU models - see data sheet.) | ||||||
If not described as POM (per-outlet monitored), the IP-DMI- and IP-DMA- series provide current metering per strip only.
