CoolTeg

CoolTeg cooling units solutions are designed to address the very high density heat loads typically found in today’s data center or equipment room. The side mount solutions can be applied as the main cooling system in various types of data centers. Open and Closed air loop architectures give a high degree of design flexibility to ensure that the cooling needs of the equipment can be met, whatever the design criteria may be. The highly efficient cooling units are available with capacities up to 36kW in a 300mm wide footprint to ensure that even the most demanding computing equipment environment can be kept at the optimum temperature.

OPEN AIR LOOP ARCHITECTURE is ideally suited for use in hot/cold and contained cold aisle deployments and can be used to supplement the existing cooling system within a facility to add capacity on a zone by zone basis. Warm air is sucked directly from the hot aisle, cooled by the side mounted cooling units before being delivered back into the cold aisle for use by the equipment. The range of available capacities means that it is now easy to meet zone cooling requirements in a hot/cold aisle deployment without over‑cooling the entire facility. Furthermore, side cooling can be combined with the CONTEG contained cold or hot aisle solution to further promote efficient use of chilled air leading to reduced facility operational costs.

CLOSED AIR LOOP ARCHITECTURE is ideally suited for very high heat density racks where traditionally delivered cooling air may not provide sufficient capacity for the very high thermal loads generated by equipment placed in the racks. Additionally, the side mount closed architecture ensures that heat generated within the cabinet is removed at the point of production and not released into the data center environment, thereby minimizing the chances of localized hot‑spots forming in the high density zones.

• Cooling capacities: up to 36kW
• Height: 42, 45 or 48U
• Width: 300mm
• Depth: 1000 or 1200mm (1000mm not applicable for closed loop)
• Welded frame construction of sheet steel
• Available in Direct Expansion (DX) and Chilled Water (CW) variants
• Electronic Control Board – cooling and chilled air throughput are CoolTeg controlled with microprocessors to ensure optimum cooling levels are maintained at all times

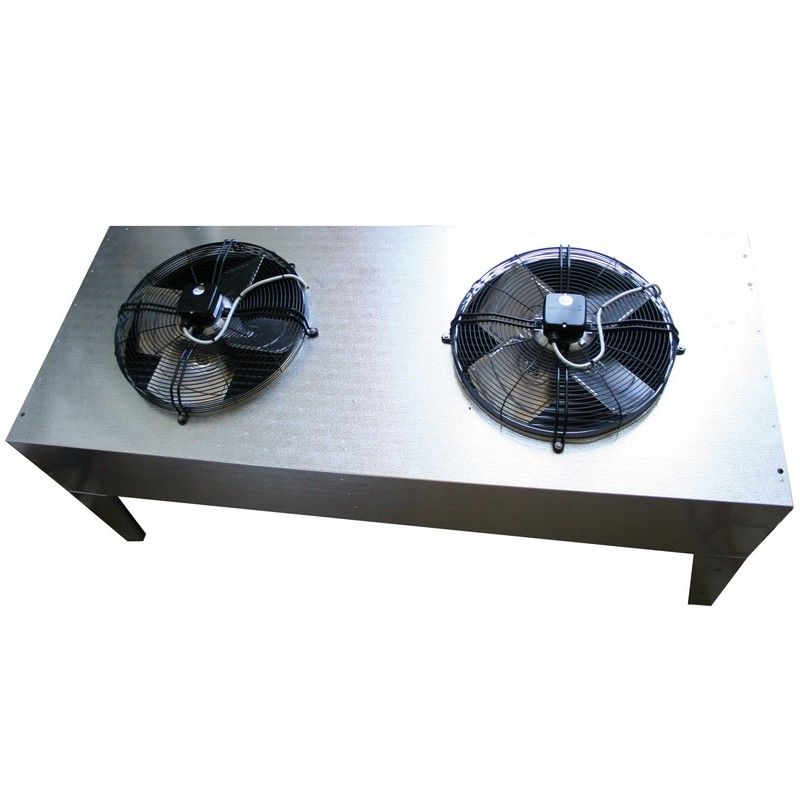

• Plumbed to either outdoor condensers or the central chilled water systems. Pipes are laid below raised floor and routed to the chilled water or condenser installations
• EC fans available
