iConverter GX/TM2

10/100/1000BASE-T UTP to 1000BASE-X  Intelligent Media Converter and
Network Interface Device

iConverter GX/TM2
Metro Ethernet Access
Management System



PDF_014_36x36.jpgadatlap

Jellemzők

  • Carrier-Grade optical Ethernet Network Interface Device
  • Integrated SNMPv1, SNMPv2c, SNMPv3 and IP-less 802.3ah management
  • 802.3ah Link OAM for early fault detection and performance monitoring
  • VLAN with 802.1ad Q-in-Q for E-Line and E-LAN services
  • Quality of Service for Voice/Data/Video over Ethernet
  • Bandwidth control (rate limiting) with 64Kb increments
  • Port MIB statistics and optical performance statistics to support Service Level Agreements
  • Port Access Control for enhanced security
  • 10,240 byte Jumbo frames
  • Layer 2 Control Protocol (L2CP) Policy Control
  • Configurable Link Fault Propagation modes
  • Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
  • Fixed-fiber connectors available for multimode and single-mode dual fiber and single-mode single-fiber
  • UTP auto-crossover and auto-negotiation of data rate, duplex modes and pause capabilities
  • Commercial (0 to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75º C) temperature ranges
  • MEF 9 and 14 Certified Compliant
  • NEBS Level 3 Compliant

Alkalmazás

The iConverter GX/TM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The GX/TM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.

The GX/TM2 is available as a compact standalone unit or as a chassis plug-in module. The hot-swappable GX/TM2 plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The plug-in module can manage other modules in the same chassis and operate as a managed 10/100/1000 media converter. It features two Gigabit Ethernet backplane ports for connectivity to adjacent modules in a chassis for multi-port and multi-service configurations.

The standalone GX/TM2 is available as a tabletop or wall-mount unit. The tabletop model can be DIN-rail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC/DC power adapter or a terminal connector for DC power. The GX/TM2 standalone unit combines management capability with a compact chassis for deployment at the demarcation point.



Carrier-Grade Optical Ethernet



iConverter fiber access Network Interface Devices and media converters are MEF 9 and 14 certified compliant and NEBS Level 3 compliant. iConverter NIDs enable Carrier-Grade Optical Ethernet with reliability and performance monitoring to support Service Level Agreements (SLAs).

The modular design of iConverter fiber access equipment future-proofs Metro Ethernet services with scalability of network services and lowers operating costs with comprehensive OAM management and provisioning.



Metro Ethernet Access

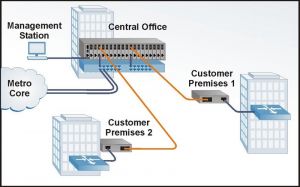

At the Central Office, the GX/TM2 plug-in module is installed in a managed iConverter 19-Module chassis for high-density fiber distribution from UTP switch equipment. At Customer Premises 1 and 2, GX/TM2 standalone NIDs provide a fiber uplink to a single copper port for intelligent demarcation of Ethernet services.

Paraméterek

Description 10/100/1000BASE-T UTP to 1000BASE-X
Fiber Media Converter
and Network Interface Device
Protocols 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X with 10,240 bytes max. frame size
UTP Cable EIA/TIA 568A/B, Category 5 and higher
Fiber Cables Multimode: 50/125, 62.5/125, 100/140μm
Single-mode: 9/125μm
Serial Cable RS-232, 22 to 24 AWG, 12 to 50 pF/ft.
UTP Connector RJ-45
Fiber Connectors
- SFP
- Dual Fiber
- Single-Fiber
LC
SC, ST, LC, MT-RJ
SC
Serial Connector Mini DIN-6 female,
mini DIN-6 male to DB-9 female adapter included
Controls DIP-Switches and LEDs
DC Power Plug-In Module: 1.1A @ 3.3VDC
Standalone: 8-15VDC,
0.6A @ 9VDC
DC Power Connector Plug-In: Power supplied by backplane
Standalone: 2.5mm Barrel Connector
or Field-wireable Terminal Connect
AC Power Adapter
[US]
Plug-In Module: N/A
Standalone: 100-120VAC/60Hz
0.06A @ 120VAC
AC Power Adapter [Universal] Plug-In Module: N/A
Standalone: 100-240VAC/50-60Hz
0.06A @ 120VAC
Dimensions Plug-In Module: W:0.85" x D:4.5" x H:2.8"
Standalone: W:3.1" x D:4.8" x H:1.0"
Wallmount: W:3.8" x D:4.8" x H:1.0"
Weight
without power adapter
Plug-In Module: 8oz.
Standalone: 1 lb.
Weight
with power adapter
Plug-In Module: N/A
Standalone: 1.5 lb.
Compliance UL, CE, FCC Class A, MEF 9, MEF 14
IP-Based Management Telnet; SNMPv1, SNMPv2c, SNMPv3
Temperature Standard Operating: 0 to 50º C
Wide Operating: -40 to 60º C
Extended Operating: -40 to 75 º C
Storage: -40 to 80º C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (Hours) Plug-In Module: 450,000
Standalone without Power Adapter: 450,000
Standalone With Power Adapter: 250,000


Fiber Type / Dual Fiber or Single-FiberDistancesConnector TypeTx λ (nm)Rx λ (nm)Min.
Tx Power (dBm)
Max.
Tx Power (dBm)
Min.
Rx Sense (dBm)
Max.
Rx Sense (dBm)
Link Budget
(dBm)
SCMT-RJLCSFP
SFP - - - - 8939N-0 - - - - - - -
MM/DF 220/550m 8922N-0 8924N-0 8926N-0 - 850 850 -10 -4 -17 -3 7
SM/DF 12km 8923N-1 8925N-1 8927N-1 - 1310 1310 -9.5 -3 -19.5 -3 10
SM/DF 34km 8923N-2 - 8927N-2 - 1310 1310 -5 0 -23 -3* 18
SM/DF 80km 8923N-3 - 8927N-3 - 1550 1550 -5 0 -23 -3* 18
SM/DF 110km 8923N-4 - 8927N-4 - 1550 1550 0 5 -24 -3** 24
SM/DF 140km 8923N-5 - 8927N-5 - 1550 1550 2 5 -28 -8*** 30
SM/SF 20km 8930N-1 - - - 1310 1550 -9.5 -3 -20 -3 10.5
SM/SF 40km 8930N-2 - - - 1310 1550 -3 0 -20 -3* 17
SM/SF 20km 8931N-1 - - - 1550 1310 -9.5 -3 -20 -3 10.5
SM/SF 40km 8931N-2 - - - 1550 1310 -3 0 -20 -3* 17
SM/SF 20km 8932N-1 - - - 1310 1490 -9.5 -3 -20 -3 10.5
SM/SF 20km 8933N-1 - - - 1490 1310 -9.5 -3 -20 -3 10.5


When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
*A minimum of 3dB of attenuation is required for these models.
**A minimum of 8dB of attenuation is required for this model.
***A minimum of 13dB of attenuation is required for this model.
When ordering a Wide Temperature model, add a "W" to the end of the part number, and when ordering an Extended Temperature model, add a "Z" to the end of the part number (see chart above).

Chassis and Mounting Options Ordering Table

 19-Module5-Module2-Module1-Module
ConfigurationAC
(60 watts)
AC
(120 watts)
24VDC48VDCAC24VDC48VDCAC18-60DCUS ACUNIV AC
One (1) Power Supply 8200-1 8201-1 8206-1 8205-1 8220-1 8226-1 8225-1 8230-0 8235-0 8240-1 8240-2
One (1) Power Supply with Dying Gasp Support - - - - - - - 8230-1 8235-1 8241-1 8241-2
Two (2) Power Supplies 8200-2 8201-2 8206-2 8205-2 8220-2 8226-2 8225-2 - - 8245-111* 8245-112*
Three (3) Power Supplies 8200-3 8201-3 8206-3 8205-3 - - - - - - -
Spare Power Supply 8200-9 8201-9 8206-9 8205-9 8220-9 8226-9 8225-9 - - - -
23" Rack Mounting Kit 8091-2 8091-2 8091-2 8091-2 8092-2 8092-2 8092-2 - - - -
Blank Module Panel 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 - -
Wall Mounting Hardware Kit -   - - - - - 8249-0 8249-0 8249-0 8249-0
1U 19" Rack Mount Shelf - - - - - - - 8260-0 8260-0 8260-0 8260-0
DIN Rail Mounting Kit -   - - - - - - - 8250-0 8250-0


When ordering a Wide Temperature chassis, add a W to the end of the part number. For example:8230-1W
Consult factory for extended temperature (-40 to +75º C) models.
* Click on part number for complete ordering information on the 1-Slot Redundant Power Chassis with Power over Ethernet
