Standard Cable Management

Standard management products are used for vertical or horizontal routing cables in the rack.

PLASTIC CABLE BRACKETS

  • Types:
    a) for managing vertical cables
    b) for managing horizontal cables
  • Equipped with metal flange for installing on 19“ vertical extrusions
  • Color powder coated RAL (standard RAL 9005); brackets black
PLASTIC CABLE BRACKETS

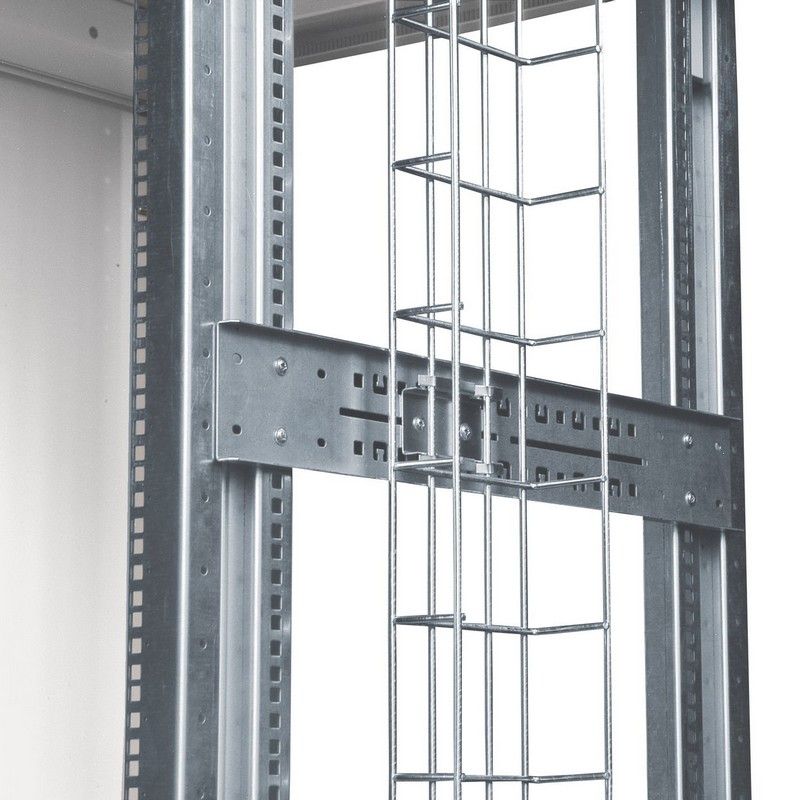

CABLE BASKET TRAYS

  • 140x30mm (WxD): could be mounted between horizontal holder and side panel
  • 300x60mm and 400x60mm (WxD); mounted on inner side of horizontal holder
  • 140x60mm (WxD): mounted on inner side of horizontal holder
  • Produced for rack sizes 15‑48U
  • Mounted on holders of vertical extrusions, horizontal holders are needed for racks of 18, 21 and 27U; for RI7 and RM7 only sizes 42 and 45U
  • Set of fittings included



SIDE CABLE PERFORATED PANELS

  • Application in free‑standing racks 15 – 48U high
  • Available widths – 150mm and 300mm
  • Installation either directly in top and bottom frame of the rack (OPTIMAL/PREMIUM racks family only) or on holders of vertical extrusions (all free‑standing rack series)
  • Installation kit is included in delivery





PDF_014_36x36.jpgDownload the datasheet

Features

19" WIRE MANAGEMENT PANELS WITH PLASTIC BRACKETS

  • Height 1U or 2U
  • Available in“front only” and“front and rear” types
  • 5 plastic brackets per side
  • Oval openings in panel allow front to rear cabling
  • Color powder coated RAL (standard RAL9005); brackets black


19" WIRE MANAGEMENT PANELS WITH PLASTIC DUCTS

  • Height 1U or 2U
  • Available in “front only” and “front and rear” types
  • Plastic duct for cable managing
  • Oval openings in panel allow front to rear cable passing
  • Color powder coated RAL (standard RAL 9005); ducts are black


METAL CABLE BRACKETS

  • For vertical cable management
  • Dimensions 100x100 or 100x140mm
  • Flange with 4 holes for installing on front or side of 19" vertical extrusion
  • Zinc plated
  • Each code contains 10pcs of brackets
  • Front or side cable entry


HOLDERS OF VERTICAL WIRE MANAGEMENT PANELS AND CABLE BRACKETS

  • Two designs HVMF and HVMP
  • HVMF - ready for cable management; compatible with VO-xx/yy and DP-VP-VR-xx
  • HVMP - additional 3x 1U 19" space (load rating 5kg by one position); compatible with separation frame
  • Set includes 2 holders
  • Mounting kit included
  • Color black (RAL 9005)


VERTICAL WIRE MANAGEMENT PANELS

  • For racks 15‑48U high
  • Plastic duct for cable management, size 80x60mm
  • Oval openings in base of ducts allow front to rear cabling
  • Ducts of 33U and over have divided cover for easier handling
  • Installation to the front part of vertical extrusions by using holder of vertical wire management panels (HVMF) – ordered separately
  • Color black (RAL 9005)


HORIZONTAL HOLDERS FOR CABLE TRAYS
AND SIDE CABLE MANAGEMENT

  • HVMS‑H‑M: for ROF family rack series, mounted to rack frame
  • HVMS‑H: for all rack series (recommended for RM7 and RI7), mounted on vertical extrusions
  • Possibility to install plastic cable brackets
  • Set includes 2 holders
  • Mounting kit included



SIDE CABLE GRIDS

  • Installation possible in racks 600, 800 and 1000mm deep
  • The installation kit is part of delivery
  • Cable ties are not part of delivery

Applications

Cable management inside the racks.

Plastic Cable Brackets

Code Description
VO-P1-40/50 cable bracket 40 x 50 mm for horizontal cable guiding
VO-P3-80/60 cable bracket 80 x 60 mm for horizontal cable guiding
VO-P2-40/50 cable bracket 40 x 50 mm for vertical cable guiding
VO-P4-80/60 cable bracket 80 x 60 mm for vertical cable guiding
VO-P5-40/80 cable bracket 40 x 80 mm for horizontal cable guiding
VO-P6-40/80 cable bracket 40 x 80 mm for vertical cable guiding
VO-P7-80/80 cable bracket 80 x 80 mm for horizontal cable guiding
VO-P8-80/80 cable bracket 80 x 80 mm for vertical cable guiding

VO-40/50 cable bracket 40 x 50 mm
VO-80/60 cable bracket 80 x 60 mm
VO-40/80 cable bracket 40 x 80 mm
VO-80/80 cable bracket 80 x 80 mm



Metal Cable Brackets

Code Description
VO-W1-100/140 metal cable bracket, vertical, zinc plated, 100 x 140 mm, side cable entry, 10 pcs
VO-W2-100/140 metal cable bracket, vertical, zinc plated, 100 x 140 mm, front cable entry, 10 pcs
VO-W2-100/100 metal cable bracket, vertical, zinc plated, 100 x 100 mm, front cable entry, 10 pcs



Wire Management Panels With Plastic Brackets

Code Description
DP-VP-P1 19" wire management panel 1U - front only, plastic hooks 40 x 50 mm
DP-VP-P2 19" wire management panel 1U - both sides, plastic hooks 40 x 50 mm
DP-VP-P3 19" wire management panel 2U - front only, plastic hooks 80 x 60 mm
DP-VP-P4 19" wire management panel 2U - both sides, plastic hooks 80 x 60 mm
DP-VP-P5 19" wire management panel 1U - front only, plastic hooks 40 x 80 mm
DP-VP-P6 19" wire management panel 1U - both sides, plastic hooks 40 x 80 mm
DP-VP-P7 19" wire management panel 2U - front only, plastic hooks 80 x 80 mm
DP-VP-P8 19" wire management panel 2U - both sides, plastic hooks 80 x 80 mm



Vertical Wire Management Panels - plastic

Code Description
DP-VP-VR-15 vertical cable management 15U
DP-VP-VR-18 vertical cable management 18U
DP-VP-VR-21 vertical cable management 21U
DP-VP-VR-24 vertical cable management 24U
DP-VP-VR-27 vertical cable management 27U
DP-VP-VR-30 vertical cable management 30U
DP-VP-VR-33 vertical cable management 33U
DP-VP-VR-36 vertical cable management 36U
DP-VP-VR-42 vertical cable management 42U
DP-VP-VR-45 vertical cable management 45U and 48U



Wire Management Panels with Plastic Ducts

Code Description
DP-VP-K01 19" wire-management panel 1U front only, duct 40 x 40 mm
DP-VP-K02 19" wire-management panel 1U front only, duct 40 x 60 mm
DP-VP-K03 19" wire-management panel 2U front only, duct 80 x 60 mm
DP-VP-K04 19" wire-management panel 1U both sides, duct 40 x 40 mm
DP-VP-K05 19" wire-management panel 1U both sides, duct 40 x 60 mm
DP-VP-K06 19" wire-management panel 2U both sides, duct 80 x 60 mm



Side Cable Grids

Code Description
HVMS-CH-400 Horizontal side cable holder for free-standing racks, depth 400mm
HVMS-CH-500 Horizontal side cable holder for free-standing racks, depth 500mm
HVMS-CH-600 Horizontal side cable holder for free-standing racks, depth 600mm
HVMS-CH-700 Horizontal side cable holder for free-standing racks, depth 700mm
HVMS-CH-800 Horizontal side cable holder for free-standing racks, depth 800mm



Horizontal Holders for Side Cable Management

Code Description
HVMS-H-600 Horizontal holder for side cable management for RI7 racks depth 600mm, set of 2
HVMS-H-800 Horizontal holder for side cable management for RI7 racks depth 800mm, set of 2
HVMS-H-M-60/60 Horizontal holder for side cable management for ROF and RMF racks, size 60x60, set of 2
HVMS-H-M-60/80 Horizontal holder for side cable management for ROF and RMF racks, size 60x80, set of 2
HVMS-H-M-60/100 Horizontal holder for side cable management for ROF and RMF racks, size 60x100, set of 2
HVMS-H-M-80/80 Horizontal holder for side cable management for ROF and RMF racks, size 80x80, set of 2
HVMS-H-M-80/100 Horizontal holder for side cable management for ROF and RMF racks, size 80x100, set of 2



Cable Basket Trays

CABLE BASKET TRAYS FOR DATA RACKS 140 x 30 MM
Code Description
HVMS-B-600-140/30 Cable basket tray for free-standing cabinets 15 and 18U, H 600mm
HVMS-B-800-140/30 Cable basket tray for free-standing cabinets 21U, H 800mm
HVMS-B-1000-140/30 Cable basket tray for free-standing cabinets 24 and 27U, H 1000mm
HVMS-B-1400-140/30 Cable basket tray for free-standing cabinets 33 and 36U, H1400mm
HVMS-B-1800-140/30 Cable basket tray for free-standing cabinets 42, 45 and 48U, H1800mm

CABLE BASKET TRAYS FOR DATA RACKS 140 x 60 MM
HVMS-B-600-140/60 Cable basket tray for free-standing cabinets 15 and 18U, H 600mm
HVMS-B-800-140/60 Cable basket tray for free-standing cabinets 21U, H 800mm
HVMS-B-1000-140/60 Cable basket tray for free-standing cabinets 24 and 27U, H 1000mm
HVMS-B-1400-140/60 Cable basket tray for free-standing cabinets 33 and 36U, H 1400mm
HVMS-B-1800-140/60 Cable basket tray for free-standing cabinets 42, 45 and 48U, H 1800mm

CABLE BASKET TRAYS FOR DATA RACKS 300/400 x 60 MM
HVMS-B-1800-300/60 Cable basket 300x60 tray for free-standing cabinets 42, 45 and 48U, H 1800mm
HVMS-B-1800-400/60 Cable basket 400x60 tray for free-standing cabinets 42, 45 and 48U, H 1800mm



Side Cable Perforated Panels

VERTICAL CABLE MANAGEMENT PANELS - WIDTH 150MM
Code Description
DP-VV-15/150 Vertical cable management panel, width 150mm, for rack height 15RU
DP-VV-18/150 Vertical cable management panel, width 150mm, for rack height 18RU
DP-VV-21/150 Vertical cable management panel, width 150mm, for rack height 21RU
DP-VV-24/150 Vertical cable management panel, width 150mm, for rack height 24RU
DP-VV-27/150 Vertical cable management panel, width 150mm, for rack height 27RU
DP-VV-33/150 Vertical cable management panel, width 150mm, for rack height 33RU
DP-VV-36/150 Vertical cable management panel, width 150mm, for rack height 36RU
DP-VV-42/150 Vertical cable management panel, width 150mm, for rack height 42RU
DP-VV-45/150 Vertical cable management panel, width 150mm, for rack height 45RU
DP-VV-46/150 Vertical cable management panel, width 150mm, for rack height 46RU
DP-VV-47/150 Vertical cable management panel, width 150mm, for rack height 47RU
DP-VV-48/150 Vertical cable management panel, width 150mm, for rack height 48RU

VERTICAL CABLE MANAGEMENT PANELS - WIDTH 300MM
DP-VV-15/300 Vertical cable management panel, width 300mm, for rack height 15RU
DP-VV-18/300 Vertical cable management panel, width 300mm, for rack height 18RU
DP-VV-21/300 Vertical cable management panel, width 300mm, for rack height 21RU
DP-VV-24/300 Vertical cable management panel, width 300mm, for rack height 24RU
DP-VV-27/300 Vertical cable management panel, width 300mm, for rack height 27RU
DP-VV-33/300 Vertical cable management panel, width 300mm, for rack height 33RU
DP-VV-36/300 Vertical cable management panel, width 300mm, for rack height 36RU
DP-VV-42/300 Vertical cable management panel, width 300mm, for rack height 42RU
DP-VV-45/300 Vertical cable management panel, width 300mm, for rack height 45RU
DP-VV-46/300 Vertical cable management panel, width 300mm, for rack height 46RU
DP-VV-47/300 Vertical cable management panel, width 300mm, for rack height 47RU
DP-VV-48/300 Vertical cable management panel, width 300mm, for rack height 48RU



Holders of Vertical Wire Management Panels and Brackets

Code HVMF Code HVMP Rack's Height [U]
HVMF-15   15
HVMF-18   18
HVMF-21   21
HVMF-24   24
HVMF-27   27
HVMF-33   33
HVMF-36   36
HVMF-42 HVMP-42 42
HVMF-45 HVMP-45 45
HVMF-48 HVMP-48 48
